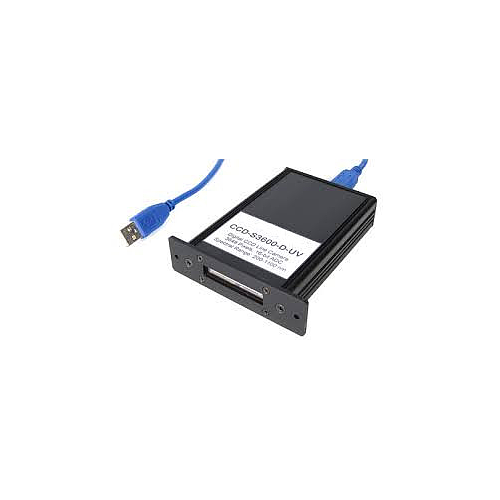

(CCD-S3600-D-UV) Advanced Digital CCD Line Camera

Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

2,717.00 2717.0 USD

2,717.00

SKU: 124-9045



Category: Line and Area Detectors

Price Valid in USD and only in North America

Additional Information

SKU 124-9045
Name (CCD-S3600-D-UV) Advanced Digital CCD Line Camera
Spectral Region 89,87,88
Active Area (diameter or square) 10+mm
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
AC or DC Coupling AC Coupled
Single or Multichannel Multichannel
Horizontal Pixel Range Greater than 1024
Detector Type CCD
Spectral Range (nm) 320 - 1100 nm; 200-1100 with UV option
Detector Material 241
Responsivity 160 V/(lx s)
Number of Pixels 3648
Pixel Size (HxV) 8x200 um

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
