(LASI-1) Single LASI Unit

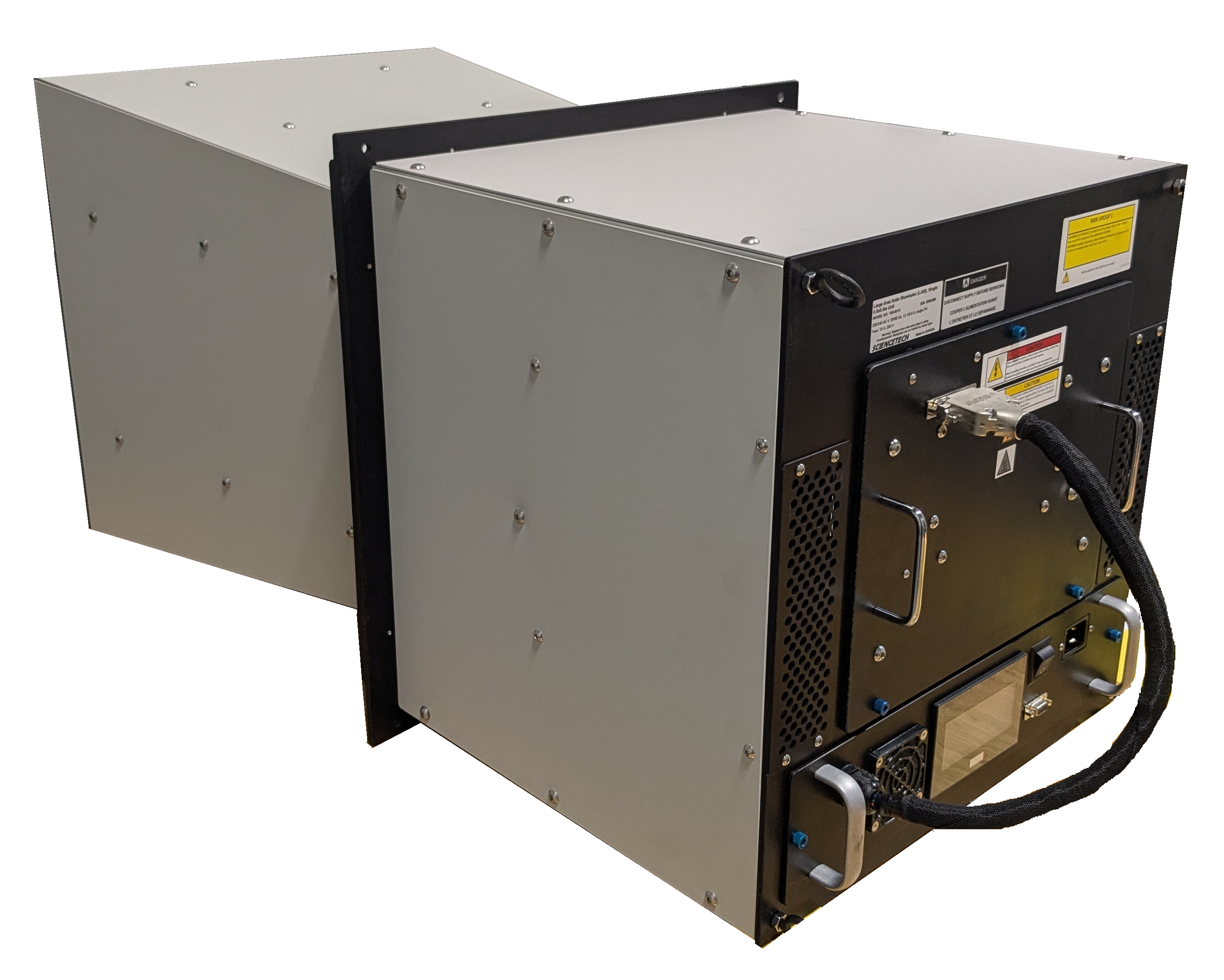

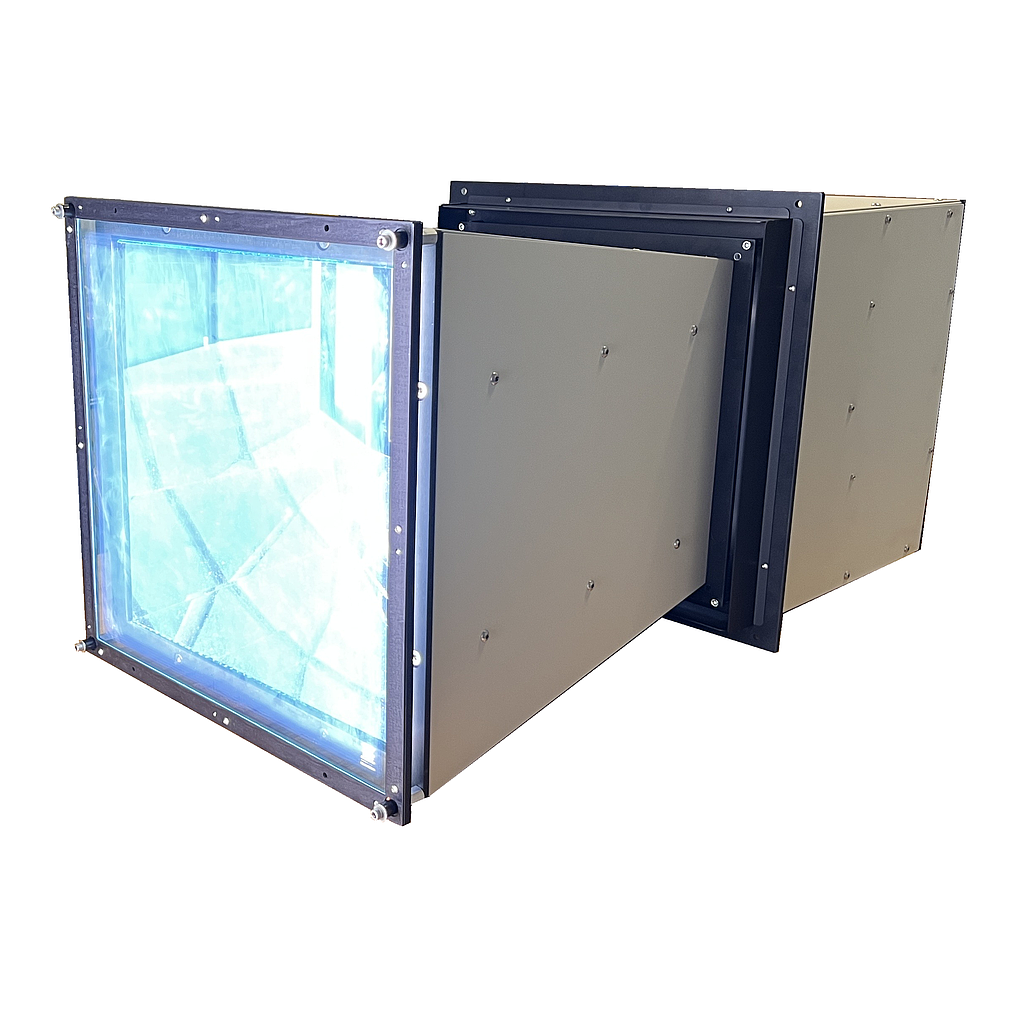

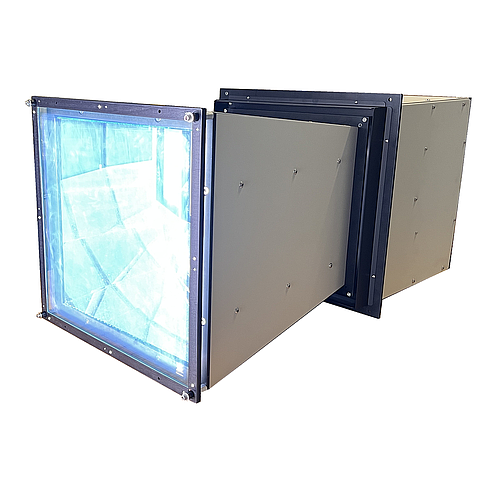

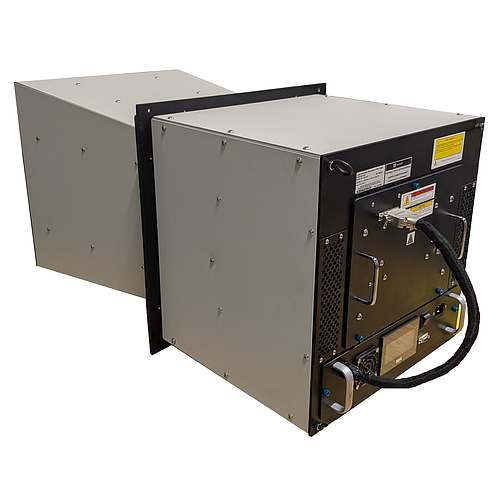

A single Large Area Solar Illuminator (LASI) unit.
Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination.
In certain applications a single LASI may be used on its own. However LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.
A single LASI unit produces Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.

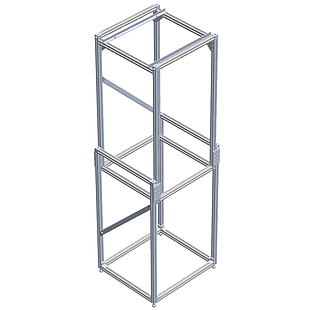

Base system does not include a mount, see brochure for product information.
Power requirements: 200-240 VAC, 12.1 to 9.0 A.

18,900.00 18900.0 USD

18,900.00

SKU: 165-9014

Category: Large Area Solar Simulators

Price Valid only in North America

Product Attachments

TDB - LASI Download

Additional Information

SKU 165-9014
Name Large Area Solar Illuminator (LASI), Single 0.5x0.5m Unit
Target Size 50x50cm
Typical Power Output 1000W/m2
Collimation Angle +/-10 degrees
Uniformity Classification less than C
Temporal Instability Classification B
Spectral Match Classification C
Working Distance 0.4 m
Lamp Power 1600W
Power Requirements 220VAC
Target Size Diameter 17.1 to 50cm
Target Size Square 12.1x12.1 to 50x50cm
Intensity on Target Up to 2 Sun
Classification Less than ACA
Solar Simulator Type Steady-State
Solar Simulator Type
