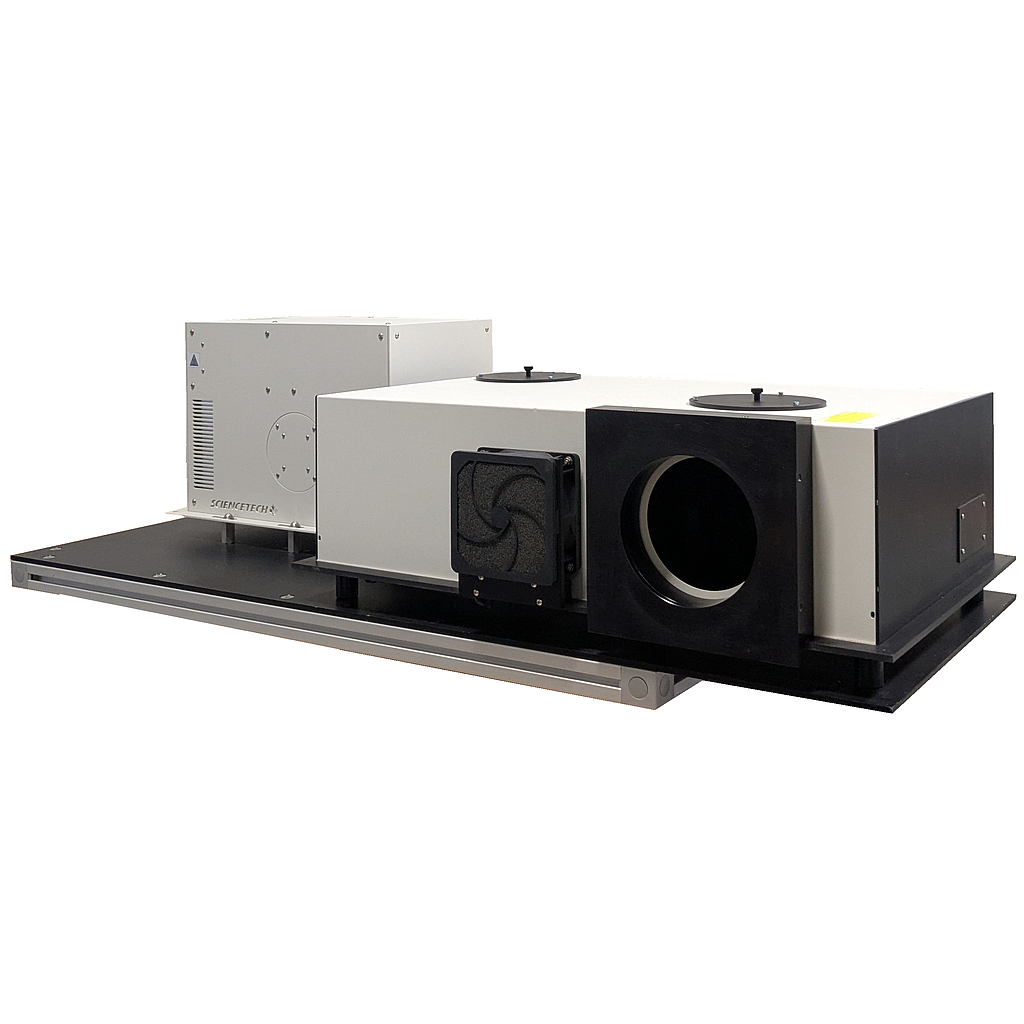

(SS1.0kW) 1000W Fully Reflective Solar Simulator

Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k

Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

29,024.00 29024.0 USD

29,024.00

SKU: 165-9001

Category: Fully Reflective Solar Simulators

Price Valid only in North America

Product Attachments

Fully Reflective Solar Simulators Download

Additional Information

SKU 165-9001
Name (SS1.0kW) 1000W Fully Reflective Solar Simulator
Target Size 12.7 cm (5") diameter
Typical Power Output 1 Sun
Collimation Angle 3 degrees half angle
Uniformity Classification Class B
Temporal Instability Classification Class A
Spectral Match Classification Class A
Working Distance 75 cm
Lamp Power 1.0 kW
Power Requirements 100-265VAC/10A
Target Size Diameter 7 to 17cm
Target Size Square 5.6x5.6 to 12x12cm
Intensity on Target Up to 2 Sun
Classification ABA
Solar Simulator Type Steady-State
Solar Simulator Type
