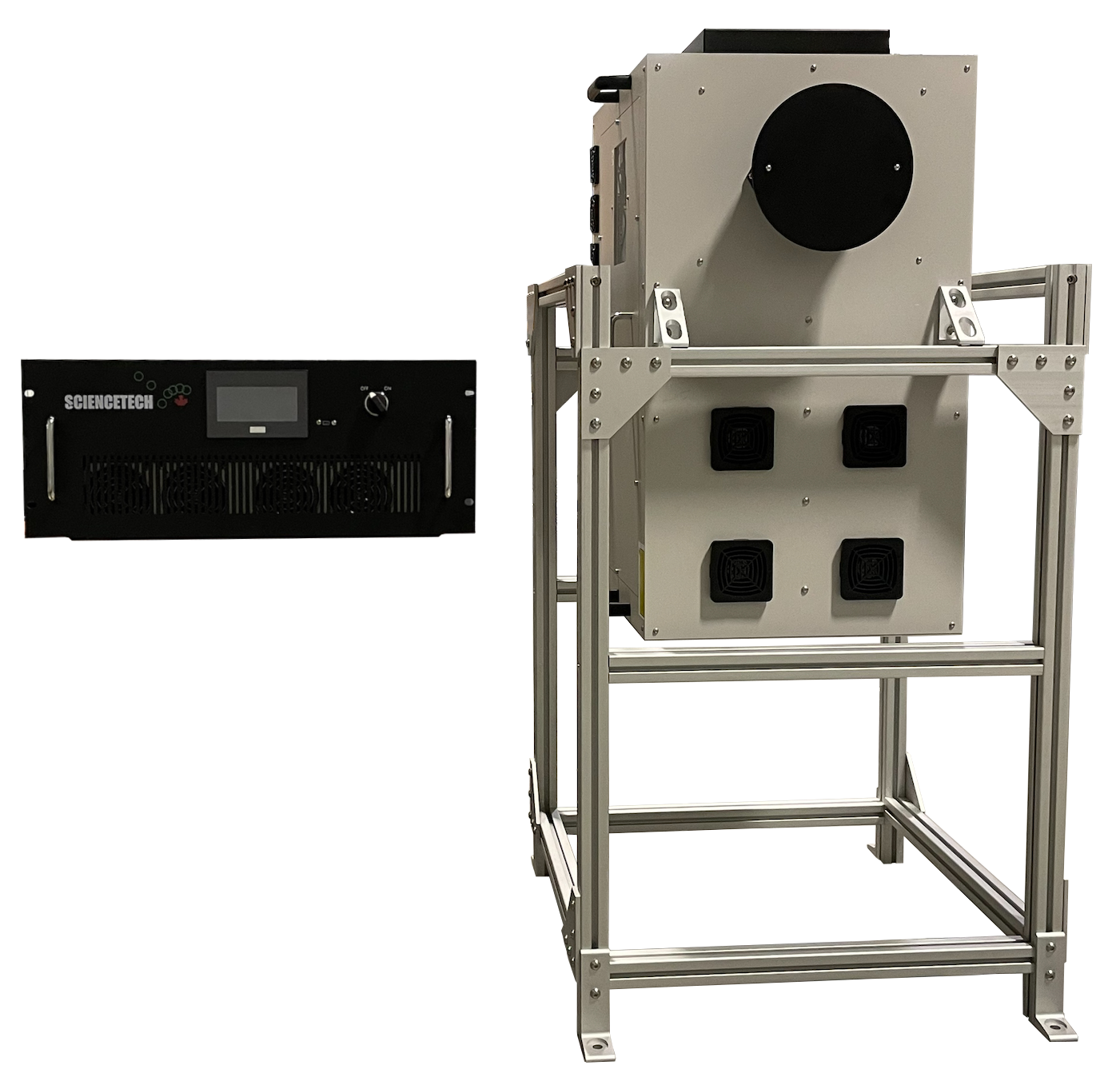

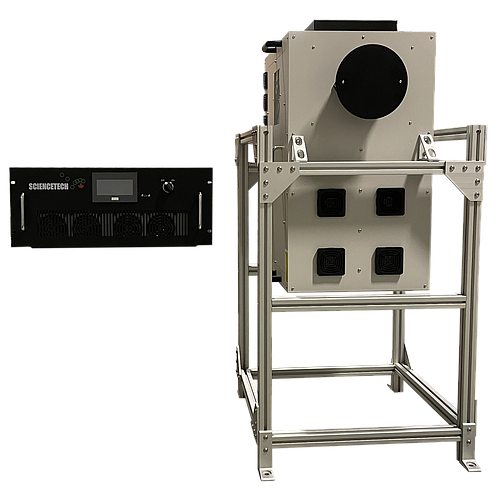

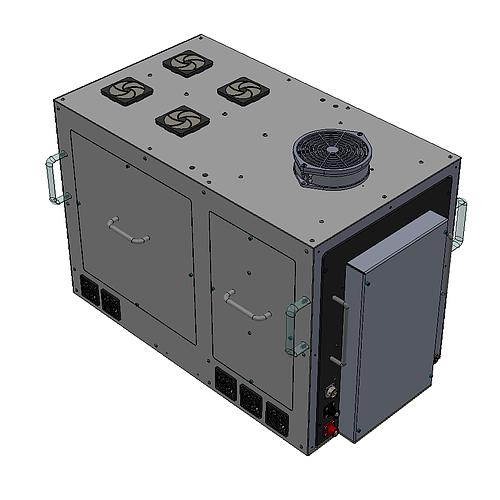

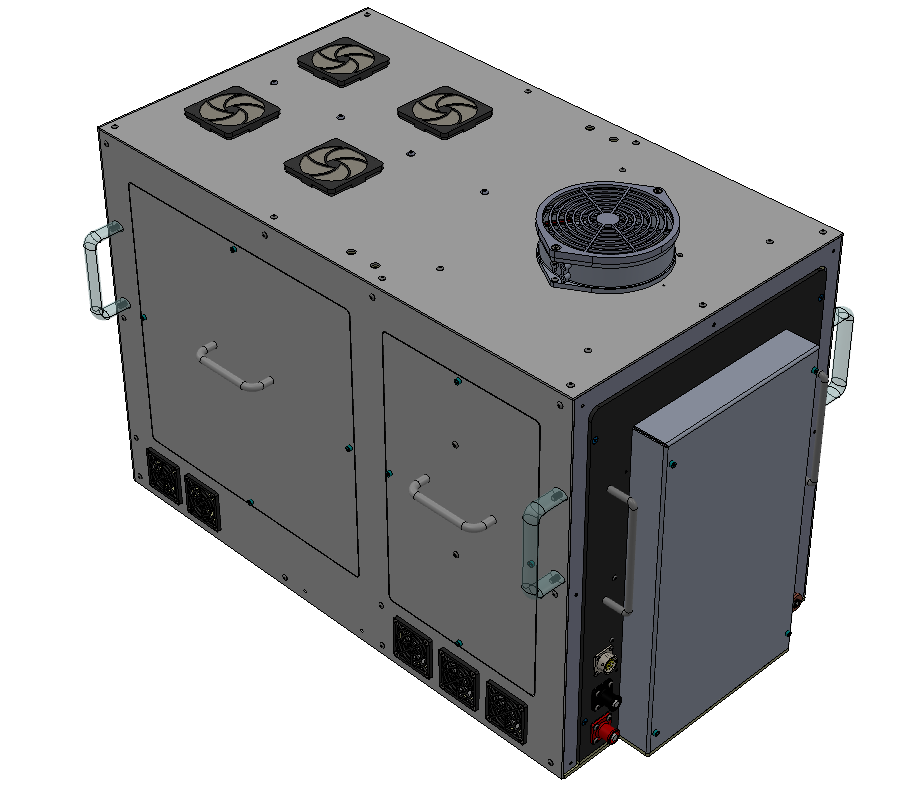

(SHC-3.0K-B) Solar Simulator, Highly Collimated, Class ABA, 11" diameter, Fresnel lens

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3kW
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order



Price Unavailable

SKU Unavailable

This selection is an invalid combination.
Please make another selection.

50,050.00 50050.0 USD

50,050.00

SKU: 164-9002



Category: Highly Collimated Solar Simulators

Price Valid in USD and only in North America

Product Attachments

Technical Brochure Download

Additional Information

SKU 164-9002
Name (SS3.0KXeFR) Highly Collimated Fresnel Lens Solar Simulator (ABA) 11.5" diameter
Target Size 30 cm (11.5") diameter
Typical Power Output 1 Sun
Collimation Angle 0.7 degree (half angle)
Non-Uniformity Classification Class B
Temporal Instability Classification Class A
Spectral Match Classification Class A
Working Distance 20 cm
Lamp Power 3.0 kW
Power Requirements 200VAC-240VAC (47- 63Hz)
Target Size Diameter 14.3 x 14.3 cm
Target Size Square 14.3 x 14.3 cm
Intensity on Target Up to 2 Sun
Classification ABA
Solar Simulator Type Steady-State
Solar Simulator Type

Customization:

SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
