(LH-E-IR037-FOC-4.5) 37 W Focused Research Grade IR Source Package

This light source package contains all components necessary to operate this 37 W IR source. This product can produce wavelengths from 2400 nm to 20,000 nm.

Lamp Power: 37 W
Lamp Type: IR037 silicon carbide element (included)
Output Beam Type: Focused
Reflector F/#: 4.5
Power Supply: PS-QT250-A-T (included)

Sciencetech's Research Grade IR Source Package comes with all the components required to operate a research-quality IR source: power supply, lamp housing, output optics, and lamp.

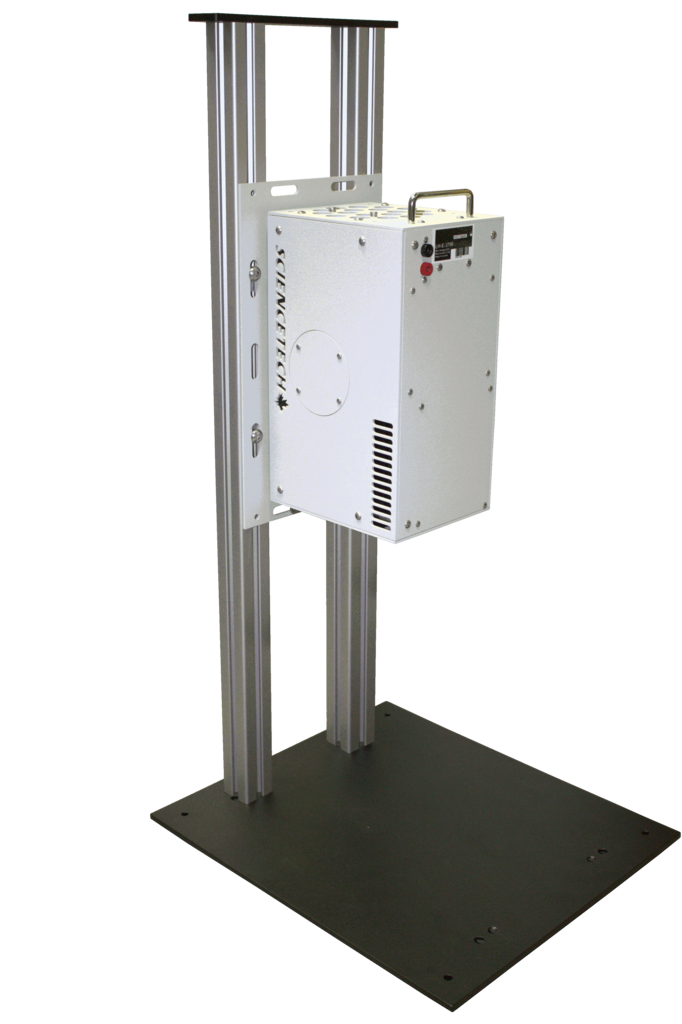

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, mirrors, alternative optical packages, optical filter holders and filter boxes, and filters.
