(9030-VISNIR) - Compact 0.1 m Monochromator - VIS/NIR Range

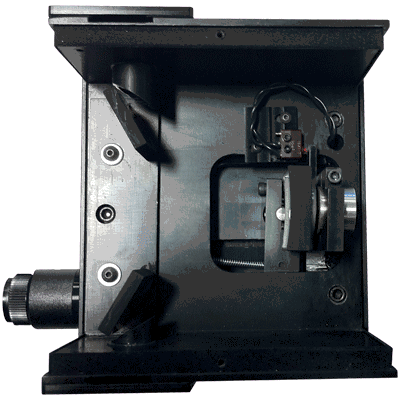

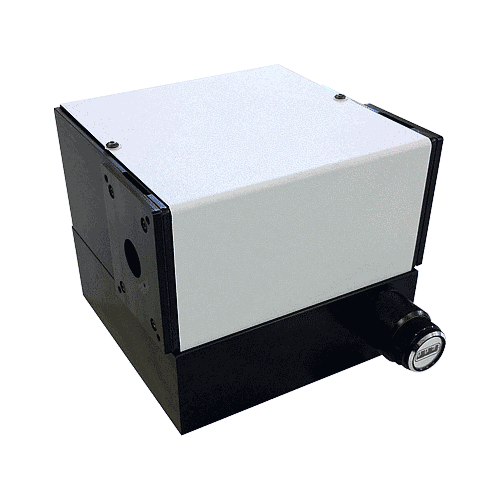

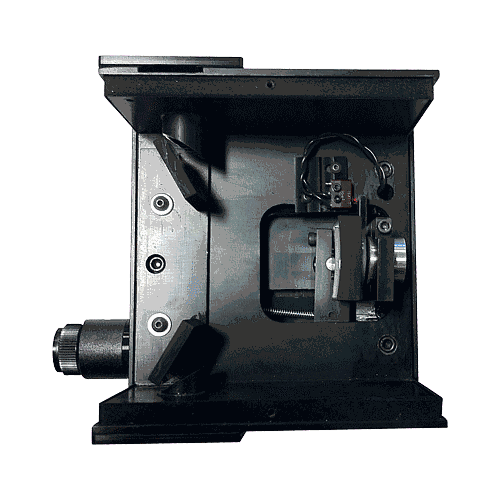

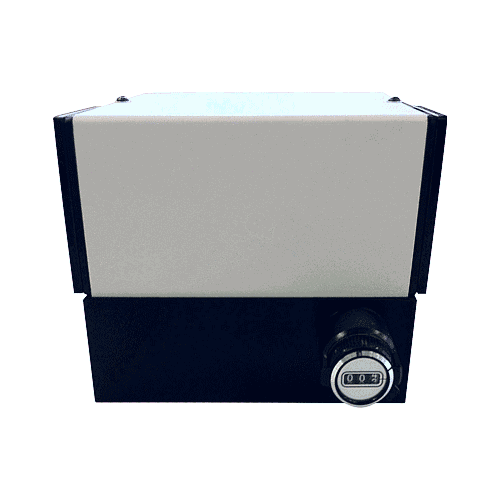

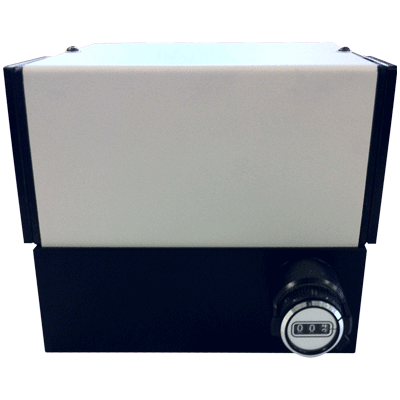

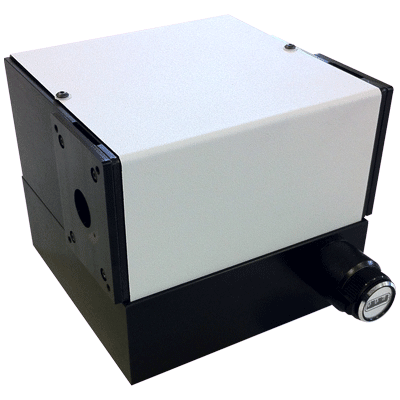

The Sciencetech 9030 monochromator is a compact, single grating scanning monochromator. It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. A pair of removable fixed-width slits are included for the input and output ports. Additional removable slits and custom width slits can also be purchased separately.
Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region.
There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS-NIR mirror coatings on this model. The 9030 monochromator cannot be used as a spectrograph and therefore only accepts single channel and PMT detectors; however, it can be used as an excitation wavelength tunable light source.
The 9030 is Sciencetech's most economical monochromator with a manual control wavelength selector and removable, fixed-width slits. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port.
