Low Cost Solar Simulators

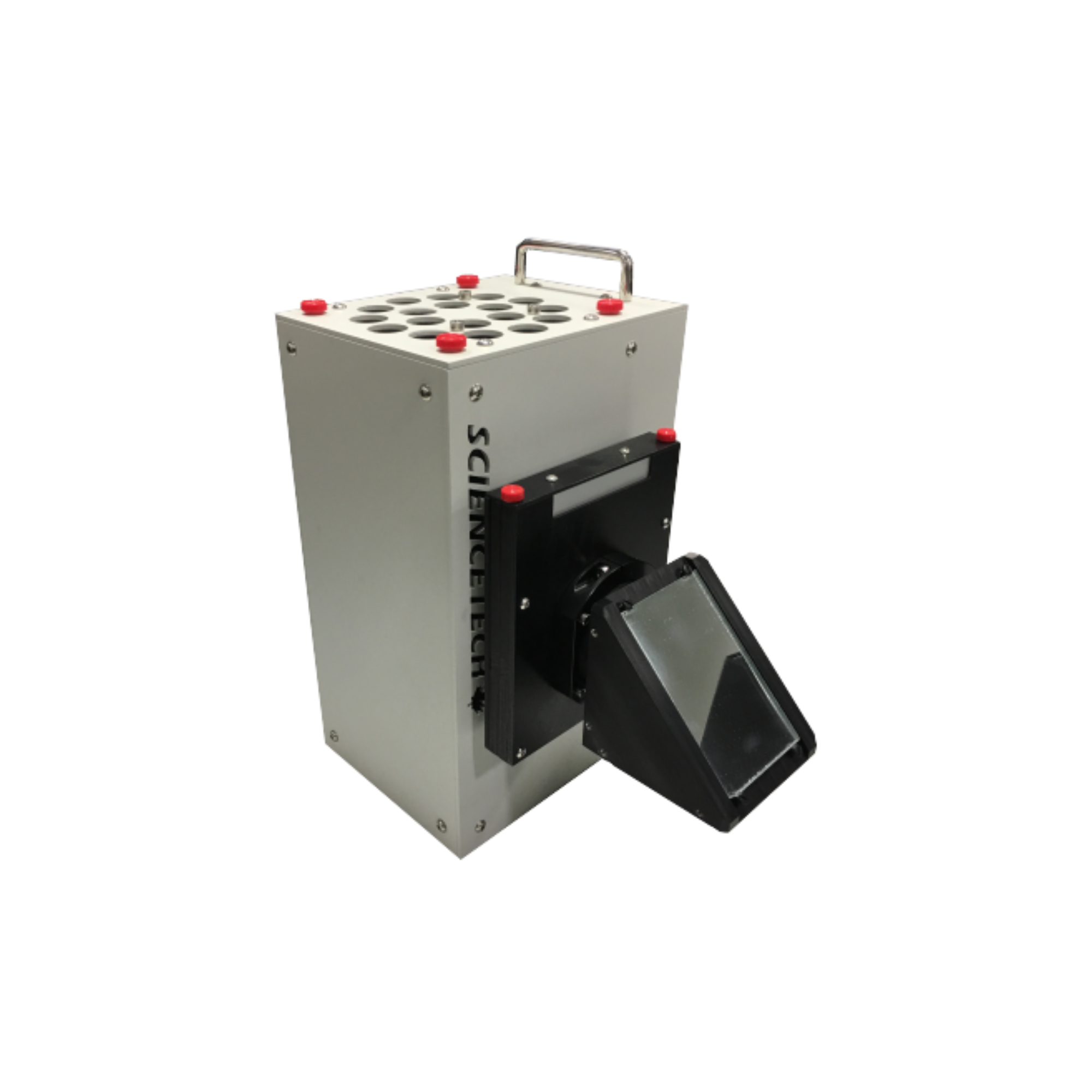

Sciencetech is proud to offer Low Cost Solar Simulator Systems, based on small area lenses. Sciencetech offers two lines (SF and SLB) of solar simulators that produce 1 Sun (AM1.5G) and class A, B or C uniformity over 1" and 2" diameters, depending the selected model. Sciencetech offers Small Collimated Beam Solar Simulators (SF series) for applications requiring a more collimated beam or more UV production than our SLB series provides. Sciencetech also offers Compact Solar Simulators (SLB series), which are more efficient than the SF series and are a popular choice when collimated light or significant levels of UV on the target are not needed.

Sciencetech Solar Simulators include an arc lamp housing, arc lamp, power supply with igniter, filter holder, manual shutter. SF solar simulators also include UV fused silica lenses. The simulator can project the uniform field horizontally (standard) or vertically with the use of a beam turner. An option for fiber optic illumination is available, but requires an additional condenser and fiber mount.

Conformity with ASTM, IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Product Comparison

Click an image to see a larger version

Product Uniformity Target Size (mm) Collimation (half angle) Working Distance(mm) (With Beam turner) Working Distance(mm) (Without Beamturner) Power Typical Non-Uniformity Measurement
SF300A <2%
Class A		 25 ∅ 1 degree 25-50 75-100 1 Sun AM1.5G
SF150B <5%
Class B		 25 ∅ 1 degree 25-50 75-100 1 Sun AM1.5G
SF150C <10%
Class C		 25 ∅ 1 degree 25-50 75-100 1 Sun AM1.5G
SF300B <5%
Class B		 50 ∅ 1 degree 25-50 75-100 1 Sun AM1.5G SF300ABA
SF300C <10%
Class C		 50 ∅ 1 degree 25-50 75-100 1 Sun AM1.5G SF300ACA
SLB300A <2%
Class A		 38x38 12 degree Use Vertical Stand 150-175 1 Sun AM1.5G Typical Non-uniformity of an SLB-300A
SLB150A <2%
Class A		 25x25 12 degree Use Vertical Stand 100-125 1 Sun AM1.5G CONTACT
SLB150B <5%
Class B		 38x38 12 degree Use Vertical Stand 150-175 1 Sun AM1.5G CONTACT
SLB300B <5%
Class B		 50x50 12 degree Use Vertical Stand 200-225 1 Sun AM1.5G CONTACT

Dimensions

Note: SF type simulators do not include a beam turning unit by default. See the product accessories to add a beam turning unit to your order.

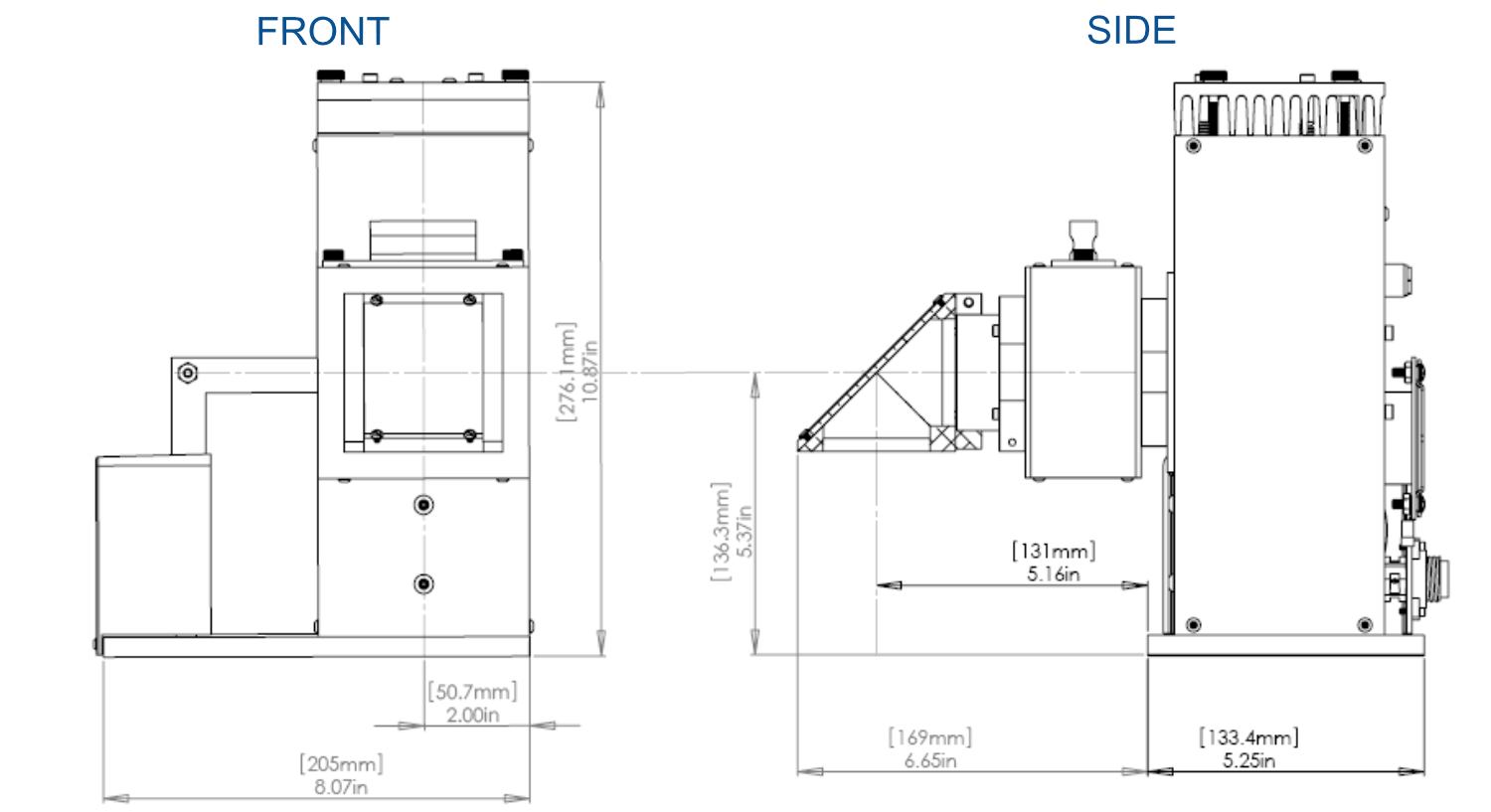

SF150Front Figure 1 SF type simulator (with beam turning unit) front view
SF150Side Figure 2 SF type simulator (with beam turning unit) side view

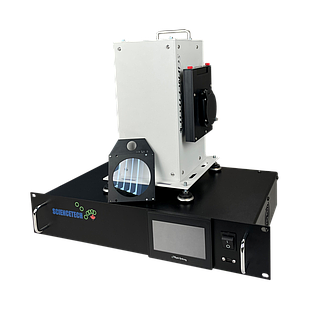

SF150Side Figure 3 SLB type simulator
