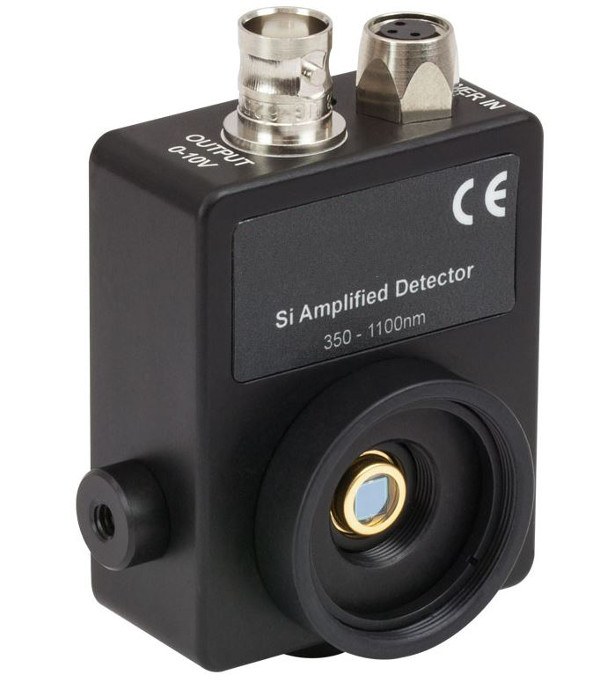

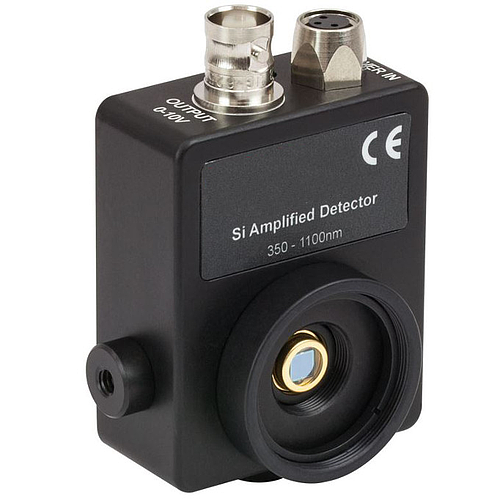

Amplified Photodetector (350-1100nm)

Sku: 582-4006

Quick Overview

Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)

Availability: In stock


Additional Information

Name Amplified Photodetector (350-1100nm)
SKU 582-4006
Spectral Region NIR, UV, Visible
Detector Material Silicon (Si)
NEP 6.5 E^-11
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
Spectral Range (nm) 350 - 1100
AC or DC Coupling DC Coupled
Single or Multichannel Single
Responsivity 0.56 A/V
Detectivity (cm-Hz^1/2/W) not applicable
Horizontal Pixel Range No
Detector Type Solid State


SCIENCETECH has built a reputation on custom solutions.  Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.


Contact us for more info or request a quote
