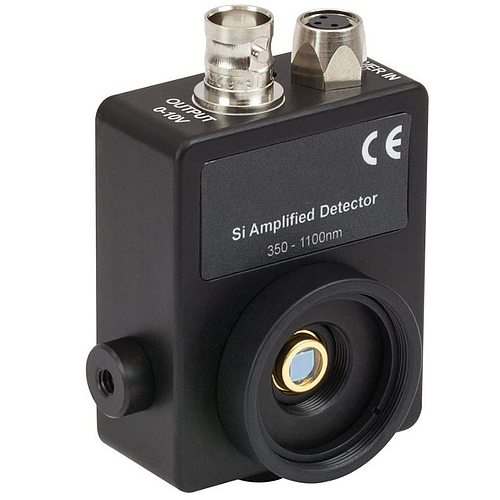

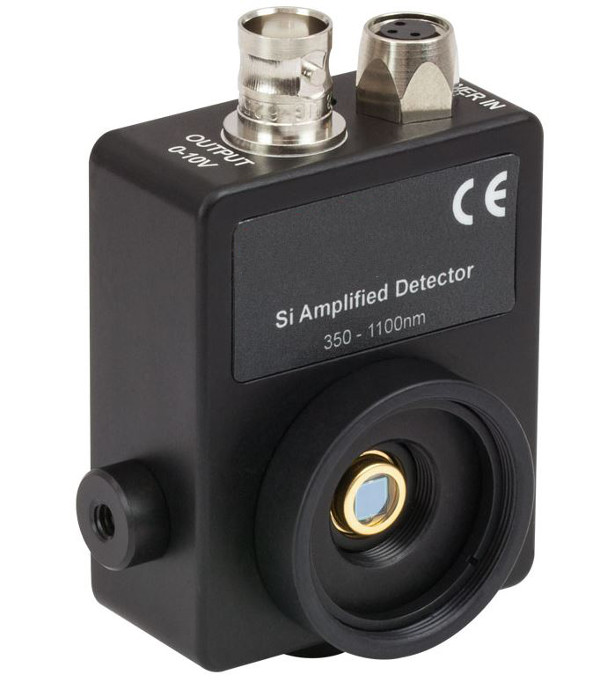

Amplified Si Photodetector (200-1100nm)

Sku: 582-4005

Quick Overview

Material: Si
Wavelength Range: 200-1100
Detector Size: 1.0mm diameter
Gain (Fixed): 10kV/A
Bandwidth Range: DC - 150MHz
NEP: 5.5x10^(-11) W/Hz^(1/2)

Availability: In stock

USD$605.00
OR

Additional Information

Name Amplified Si Photodetector (200-1100nm)
SKU 582-4005
Spectral Region NIR, UV, Visible
Detector Material Silicon (Si)
NEP 5.5 E-11
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
Spectral Range (nm) 200 - 1100
AC or DC Coupling DC Coupled
Single or Multichannel Single
Responsivity 0.45 A/V
Detectivity (cm-Hz^1/2/W) N/A
Horizontal Pixel Range No
Detector Type Solid State

Customization:

SCIENCETECH has built a reputation on custom solutions.  Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.




Contact us for more info or request a quote
