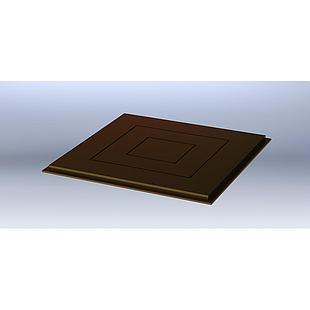

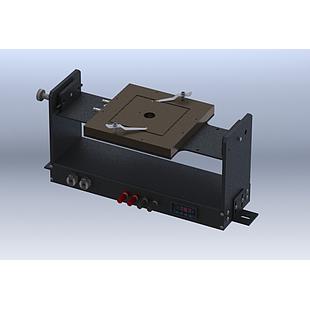

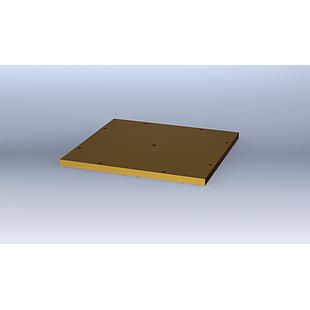

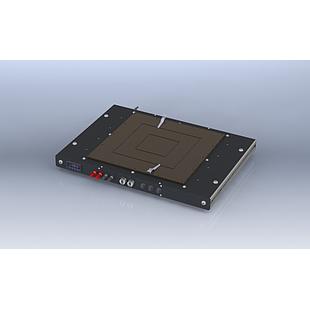

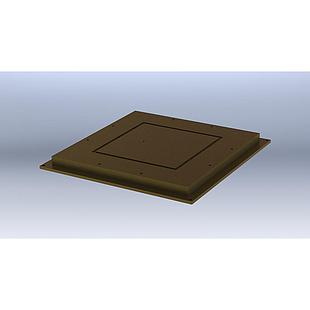

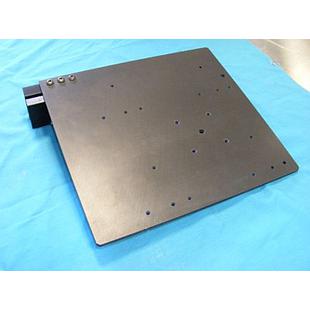

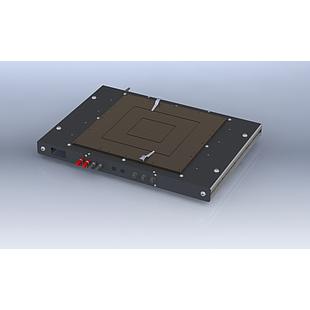

Cell Chucks
Sciencetech offers a wide range of cell holding options for various cell sizes and budgets. We offer low-cost un-cooled cell holders with probe stations, or cooled options using either thermoelectric or liquid cooling and heating.
All cell chucks have 4 binding posts to connect probe assemblies to measurement electronics. Not all products are shown on the website.
Please contact our sales team for more information.

Product | Cooling | Sample Size | Vacuum Ready |
---|---|---|---|
|
TE |
Up to 48mm Dia |
Included |
|
None |
9 x 9 cm |
Yes |
|
TE |
9 x 9 cm |
Yes |
|
None |
16.5 x 16.5 cm |
Yes |
|
Liquid |
16.5 x 16.5 cm |
Yes |
SCI-SCC6-TE |
TE |
16.5 x 16.5 cm |
Yes |
|
None |
30 x 30 cm |
Yes |
|
Liquid |
30 x 30 cm |
Yes |

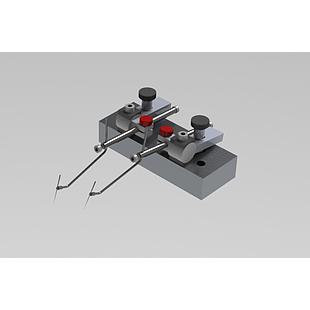

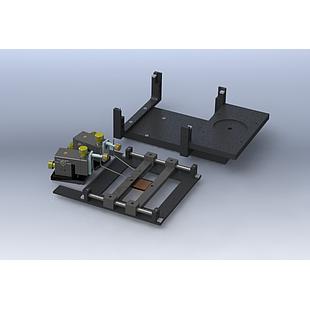

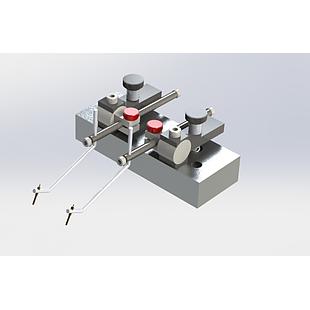

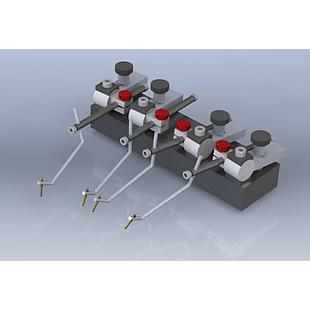

Probe Stations
Sciencetech cell chucks are designed to be used with our probe stations. All cell chucks can take measurements from the bottom of the test cell but we have a number of options for the for the top side probes as well.
Not all products are shown on the website. Please contact our sales team for more information.
Product | Style | Probe Type |
---|---|---|
|
2 Probe Station |
Tungsten Needle tip or Gold plated |
|

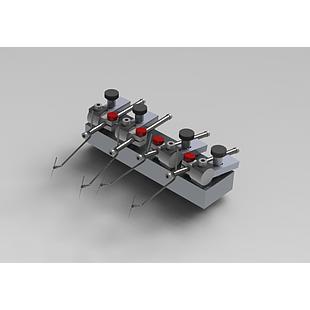

4 Probe Station |
Tungsten Needle tip or Gold plated |
|

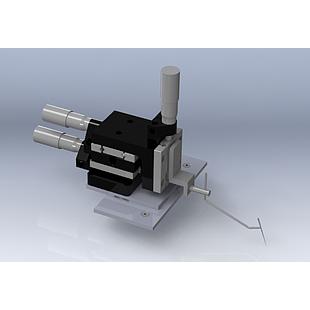

Micrometer adjust Micro-positioning |
Tungsten Needle tip or Gold plated |
|

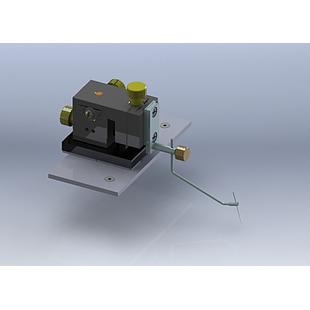

Screw adjust Micro-positioning |
Tungsten Needle tip or Gold plated |

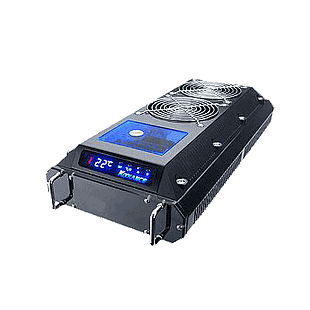

Temperature Control
Sciencetech provides temperature controllers for all of our cooled cell chucks.
Select the cooling or heating capacity needed for your application.

Product | Cooling | Capacity (Heating) | Capacity (Cooling) |
---|---|---|---|
TC-2000 |
Liquid |
2000W |
250W |
|

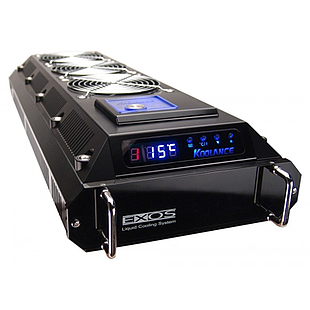

Water Recirculator |
- |
500W |
|
Water Recirculator |
- |
800W |
TE-60 |
TE |
60W |
60W |
TE-1000 |
TE/Water |
750W |
750W |

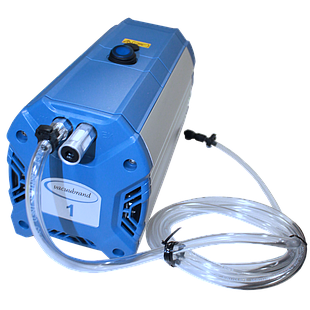

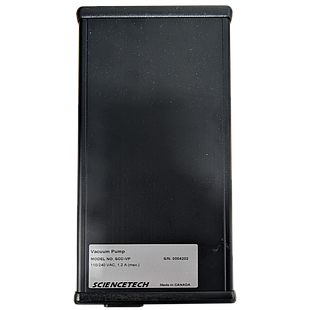

Vacuum Hold Down
Sciencetech provides vacuum pumps for all Sciencetech cell chucks. All of Sciencetech's cell chucks are 'vacuum ready' which means you can simply plug in an adequate vacuum pump and have instant vacuum hold down capabilities.

Product | Max Pressure | Power Req. |
---|---|---|
|
60 psi |
230 VAC |
|
60 psi |
115 VAC |
