Flash Solar Simulators

Flash solar simulators use a flash lamp and spectral filter to deliver a pulse of light onto a target for a short period, with minimal heating of the sample and lower cost per target area.

Sciencetech manufactures a wide range of flash solar simulators.

X

Product Category

View Filter

x
Clear all x

Filter Option

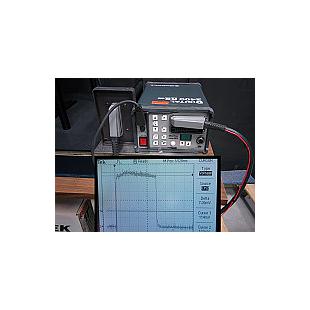

The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00
The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00 16000.0 USD
Price Valid only in North America

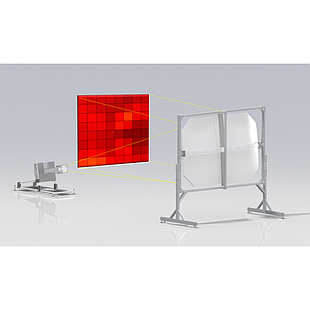

Sciencetech’s FSSP-HC-B highly collimated flash solar simulator is capable of illuminating targets up to 1.8 x 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation.

This product includes a power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
130,000.00
In stock
Sciencetech’s FSSP-HC-B highly collimated flash solar simulator is capable of illuminating targets up to 1.8 x 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation.

This product includes a power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
130,000.00 130000.0 USD
Price Valid only in North America

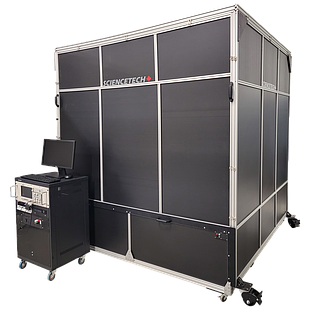

Sciencetech’s PSS1.5 flash solar simulator is designed to illuminate large photovoltaic devices up to 1.5m × 1.5m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
60,000.00
In stock
Sciencetech’s PSS1.5 flash solar simulator is designed to illuminate large photovoltaic devices up to 1.5m × 1.5m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
60,000.00 60000.0 USD
Price Valid only in North America


The Sciencetech FLASH-ST pulse stretcher is capable of stretching flash pulses from Sciencetech's standard 120VAC or 220VAC flash power supplies. The FLASH-ST can produce pulses with an intensity stability of +/- 5% over a 3ms temporal width. This pulse stretcher will reduce the peak intensity by 25% as it spreads the energy produced by the lamp over a wider time. Sciencetech also produces flash power supplies that can produce flat top pulses over different pulse widths. Please speak with your authorized Sciencetech technical sales staff to determine how we can make a Pulse Stretcher Unit to meet your specific technical requirements.
Please note that a power supply, flash bulb, and flash head are required for operation and are sold separately. This unit only works with the 2400RS flash power packs (590-0129 for 120VAC, 590-0120 for 220VAC)
8,550.00
The Sciencetech FLASH-ST pulse stretcher is capable of stretching flash pulses from Sciencetech's standard 120VAC or 220VAC flash power supplies. The FLASH-ST can produce pulses with an intensity stability of +/- 5% over a 3ms temporal width. This pulse stretcher will reduce the peak intensity by 25% as it spreads the energy produced by the lamp over a wider time. Sciencetech also produces flash power supplies that can produce flat top pulses over different pulse widths. Please speak with your authorized Sciencetech technical sales staff to determine how we can make a Pulse Stretcher Unit to meet your specific technical requirements.
Please note that a power supply, flash bulb, and flash head are required for operation and are sold separately. This unit only works with the 2400RS flash power packs (590-0129 for 120VAC, 590-0120 for 220VAC)
8,550.00 8550.0 USD
Price Valid only in North America

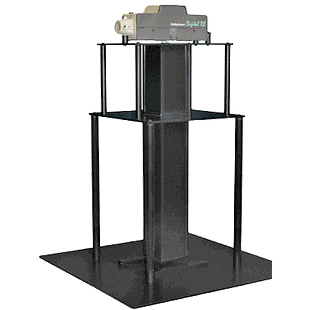

Sciencetech's FSSP solar simulator is designed to illuminate targets of 1x1m with 1 sun, or smaller targets with multiple suns. The default spectral match is to ASTM AM1.5G. The flash itself is a stable 1ms length, with options available (purchased separately) to stretch the pulse. Timing and number of flashes can be computer controlled. This unit is a Class AAA flash solar simulator by default, with options available to reduce spatial uniformity in order to increase target size.

Sciencetech can also offer increased spectral ranges and other additional features upon request.

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun) (Smaller targets available at higher intensities.)
Working Distance: 5-10m
Pulse Length: 1ms (Pulse stretching available)
Collimation: 2° half angle
42,816.00
In stock
Sciencetech's FSSP solar simulator is designed to illuminate targets of 1x1m with 1 sun, or smaller targets with multiple suns. The default spectral match is to ASTM AM1.5G. The flash itself is a stable 1ms length, with options available (purchased separately) to stretch the pulse. Timing and number of flashes can be computer controlled. This unit is a Class AAA flash solar simulator by default, with options available to reduce spatial uniformity in order to increase target size.

Sciencetech can also offer increased spectral ranges and other additional features upon request.

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun) (Smaller targets available at higher intensities.)
Working Distance: 5-10m
Pulse Length: 1ms (Pulse stretching available)
Collimation: 2° half angle
42,816.00 42816.0 USD
Price Valid only in North America


Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.

This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A (Central 1m × 1m)
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
150,000.00
In stock
Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.

This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A (Central 1m × 1m)
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
150,000.00 150000.0 USD
Price Valid only in North America


Sciencetech’s PSS2 flash solar simulator is designed to illuminate large photovoltaic devices up to 2m × 2m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 2m × 2m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
90,000.00
In stock
Sciencetech’s PSS2 flash solar simulator is designed to illuminate large photovoltaic devices up to 2m × 2m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 2m × 2m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
90,000.00 90000.0 USD
Price Valid only in North America

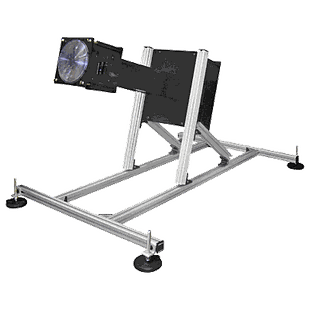

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Better than 2% at the target plane
Temporal Instability: Class A
Target Size: 5cm × 5cmm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated
109,620.00
In stock
Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Better than 2% at the target plane
Temporal Instability: Class A
Target Size: 5cm × 5cmm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated
109,620.00 109620.0 USD
Price Valid only in North America


Sciencetech’s PSS1 flash solar simulator is designed to illuminate large photovoltaic devices up to 1m × 1m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
Spectral range: 400 nm -1100 nm
32,236.00
In stock
Sciencetech’s PSS1 flash solar simulator is designed to illuminate large photovoltaic devices up to 1m × 1m in size with 1 Sun intensity, using a built-in beam-conditioning reflector to maximize the uniform light distribution. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately).

This product includes a flash system, power supply, lamp, and an air mass filter (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 1m × 1m (1 Sun)
Working Distance: 25-50mm
Pulse Length: 500µs at 90% of peak intensity, 2.5ms at 50% of peak intensity
Collimation: Non-collimated
Spectral range: 400 nm -1100 nm
32,236.00 32236.0 USD
Price Valid only in North America
