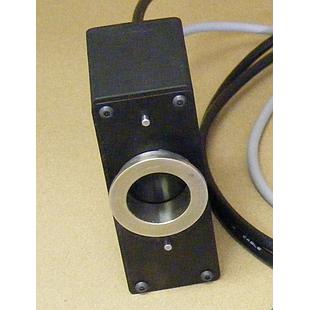

Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.
2,717.00
In stock
Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.
2,717.00 2717.0 USD
Price Valid only in North America

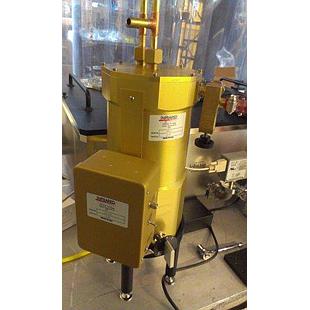

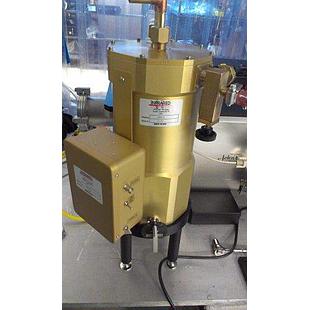

The Hot e- HEB detector system includes:
• HDL5 Helium dewar with Liquid Nitrogen cooled heat shield
• Liquid Helium Capacity -1.2 liters
• Liquid Nitrogen Capacity - 0.8 liters
• LHe hold time >20 hours
• Field of view baffle installed on heat shield
• Vacuum valve with burst disc and KF25 vacuum fitting
• Liquid Nitrogen fill and removal attachments
• Liquid Helium pumping/safety attachment
• Enhanced InSb Hot-e detector (HEB)
• Electrical Responsivity >5kV/W
• Detector Optical responsivity >3.5kV/W
• Detector electrical NEP < 500 fW.Hz-1/2
• Useful Frequency range 200- 5000 microns
• Frequency response ~ 500 kHz (-3dB)
• Operating resistance 5kOhms to 20 kOhms
• Operating Temperature 4.2K
• DC coupled response
• Physical size of element 5 mm x 4.7 mm x 300 um
• Detector installed in gold-plated copper substrate
• Cone optic assembly
• Entrance = 0.5”
• Exit = 0.196”
• Length = 0.813”
• 1" diameter wedged, Teflon window with diamond powder coating
• C285 wedged filter, 0.75” diameter, installed in front of cone entrance
• ULN6 preamplifier
50,000.00
In stock
The Hot e- HEB detector system includes:
• HDL5 Helium dewar with Liquid Nitrogen cooled heat shield
• Liquid Helium Capacity -1.2 liters
• Liquid Nitrogen Capacity - 0.8 liters
• LHe hold time >20 hours
• Field of view baffle installed on heat shield
• Vacuum valve with burst disc and KF25 vacuum fitting
• Liquid Nitrogen fill and removal attachments
• Liquid Helium pumping/safety attachment
• Enhanced InSb Hot-e detector (HEB)
• Electrical Responsivity >5kV/W
• Detector Optical responsivity >3.5kV/W
• Detector electrical NEP < 500 fW.Hz-1/2
• Useful Frequency range 200- 5000 microns
• Frequency response ~ 500 kHz (-3dB)
• Operating resistance 5kOhms to 20 kOhms
• Operating Temperature 4.2K
• DC coupled response
• Physical size of element 5 mm x 4.7 mm x 300 um
• Detector installed in gold-plated copper substrate
• Cone optic assembly
• Entrance = 0.5”
• Exit = 0.196”
• Length = 0.813”
• 1" diameter wedged, Teflon window with diamond powder coating
• C285 wedged filter, 0.75” diameter, installed in front of cone entrance
• ULN6 preamplifier
50,000.00 50000.0 USD
Price Valid only in North America

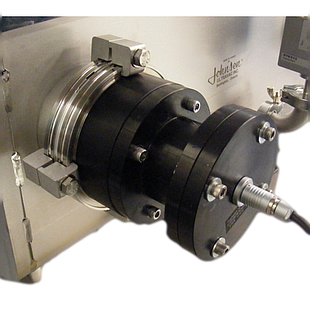

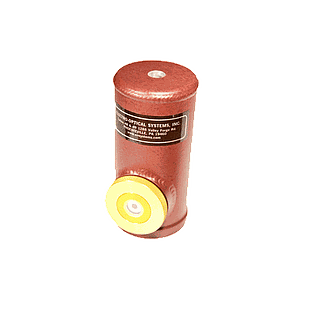

Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers,
The spectral range is limited by high density polyethylene window.
The detector WILL saturate on the visible light from the lamp. After alignment, cover the entire input opening of the detector head with thin black polyethylene to prevent undesired visible light from overloading the detector.
This detector is suitable for direct connection to Stanford SR-830 lockin preamp power. When using the Stanford lock-in, the signal overload indicator will light just before the detector saturates.The SCIDTGS-PE detector is suitable for testing FTIR alignment and material transmission measurements without special cooling.
Upon installation, the optical system MUST be re-aligned to image the iris of the light source onto the detector element. This may require rotating the entire detector head to an optimum position and/or adjusting mirrors and re-focusing.
Element size 2.0 mm dia.
Spectral bandwidth Limited by High Density Polyethylene window
Sensitivity 133,000 volts per watt HDPE Window
Frequency response 8.8Hz - 265Hz (-3db points)
N.E.P. 1x10-10 watts (100Hz, 1Hz BW)

Power requirements: +/- 15 to +/- 24 volts max @ +/- 8 mA max.
Power connections: DB-9M Pins 2,3,4,5,9 no connection
+V In Pin 1
-V In Pin 6
Common Pin 7
Case GND Pin 8
Suitable for direct connection to Stanford SR-830 lockin preamp power (not included).
6,200.00
In stock
Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers,
The spectral range is limited by high density polyethylene window.
The detector WILL saturate on the visible light from the lamp. After alignment, cover the entire input opening of the detector head with thin black polyethylene to prevent undesired visible light from overloading the detector.
This detector is suitable for direct connection to Stanford SR-830 lockin preamp power. When using the Stanford lock-in, the signal overload indicator will light just before the detector saturates.The SCIDTGS-PE detector is suitable for testing FTIR alignment and material transmission measurements without special cooling.
Upon installation, the optical system MUST be re-aligned to image the iris of the light source onto the detector element. This may require rotating the entire detector head to an optimum position and/or adjusting mirrors and re-focusing.
Element size 2.0 mm dia.
Spectral bandwidth Limited by High Density Polyethylene window
Sensitivity 133,000 volts per watt HDPE Window
Frequency response 8.8Hz - 265Hz (-3db points)
N.E.P. 1x10-10 watts (100Hz, 1Hz BW)

Power requirements: +/- 15 to +/- 24 volts max @ +/- 8 mA max.
Power connections: DB-9M Pins 2,3,4,5,9 no connection
+V In Pin 1
-V In Pin 6
Common Pin 7
Case GND Pin 8
Suitable for direct connection to Stanford SR-830 lockin preamp power (not included).
6,200.00 6200.0 USD
Price Valid only in North America


Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers and optimized to utilize the full input range of these
lock-ins for FTIR applications.
Features of our SCI425CMB0:
This detector is not hygroscopic and may be operated indefinitely under normal atmospheric conditions and at temperatures beyond 100oC. A selection of windows is available to limit spectral response.
3,200.00
In stock
Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers and optimized to utilize the full input range of these
lock-ins for FTIR applications.
Features of our SCI425CMB0:
This detector is not hygroscopic and may be operated indefinitely under normal atmospheric conditions and at temperatures beyond 100oC. A selection of windows is available to limit spectral response.
3,200.00 3200.0 USD
Price Valid only in North America


Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers and optimized to utilize the full input range of these lock-ins as a reference detector for Spectral Response, Quantum Efficiency, Constant Photocurrent Measurement in Photovoltaic Testing Systems.
Features of our SCI425CMA:
This detector is not hygroscopic and may be operated indefinitely under normal atmospheric conditions and at temperatures beyond 100oC. A selection of windows is available to limit spectral response.
Calibration is supplied with the detector.
Element size: 5 mm dia.
Spectral response: (no window, blackened): 180nm – 2.5 microns (Quartz Window)
2,400.00
In stock
Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers and optimized to utilize the full input range of these lock-ins as a reference detector for Spectral Response, Quantum Efficiency, Constant Photocurrent Measurement in Photovoltaic Testing Systems.
Features of our SCI425CMA:
This detector is not hygroscopic and may be operated indefinitely under normal atmospheric conditions and at temperatures beyond 100oC. A selection of windows is available to limit spectral response.
Calibration is supplied with the detector.
Element size: 5 mm dia.
Spectral response: (no window, blackened): 180nm – 2.5 microns (Quartz Window)
2,400.00 2400.0 USD
Price Valid only in North America


The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U
4,000.00
In stock
The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U
4,000.00 4000.0 USD
Price Valid only in North America


Main Features:

Lithium tantalate sensor
Compatible with EOS PS-1 power supply or EOS LIA/PS-1 lock-in/power supply
Power requirements are ±15 volts to ± 24 volts at ± 5mA max.
Quartz or fused silica window allows essentially flat response (±3%) 300nm-2.1µm
Electrical response -3dB points typically 0.5Hz - 150Hz
Saturation Power: 30mW

Optional Features

Sapphire, germanium, silicon, CaF2, BaF2, or KBr windows are available instead of quartz at extra cost, please specify when ordering
Specialized calibration options at extra cost, please speak to a Sciencetech representative or write to sales@sciencetech-inc.com
Lockin module (price not included in standard detector package)
3,230.00
In stock
Main Features:

Lithium tantalate sensor
Compatible with EOS PS-1 power supply or EOS LIA/PS-1 lock-in/power supply
Power requirements are ±15 volts to ± 24 volts at ± 5mA max.
Quartz or fused silica window allows essentially flat response (±3%) 300nm-2.1µm
Electrical response -3dB points typically 0.5Hz - 150Hz
Saturation Power: 30mW

Optional Features

Sapphire, germanium, silicon, CaF2, BaF2, or KBr windows are available instead of quartz at extra cost, please specify when ordering
Specialized calibration options at extra cost, please speak to a Sciencetech representative or write to sales@sciencetech-inc.com
Lockin module (price not included in standard detector package)
3,230.00 3230.0 USD
Price Valid only in North America

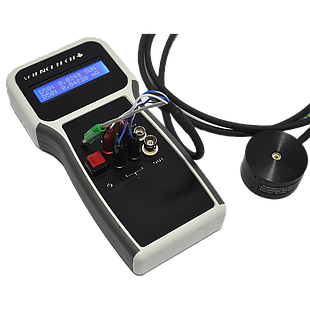

This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.
The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a calibrated solar detector made of silicon.
The Reference Detector comes with calibration data taken by Sciencetech, calibrating it to a NIST-certified solar cell, on an accompanying certificate. It reads solar simulator irradiance in "sun" units; one sun is equal to 1,000 W/m^2, at 25 degrees Celsius and Air Mass 1.5 Global.
This tool's primary use is the testing of photovoltaic cells under standard conditions.
1,675.00
In stock
This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.
The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a calibrated solar detector made of silicon.
The Reference Detector comes with calibration data taken by Sciencetech, calibrating it to a NIST-certified solar cell, on an accompanying certificate. It reads solar simulator irradiance in "sun" units; one sun is equal to 1,000 W/m^2, at 25 degrees Celsius and Air Mass 1.5 Global.
This tool's primary use is the testing of photovoltaic cells under standard conditions.
1,675.00 1675.0 USD
Price Valid only in North America

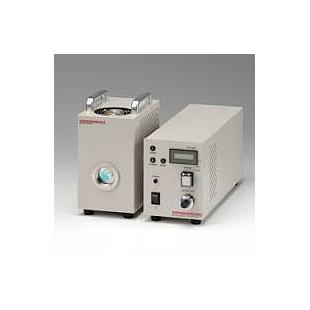

The NIR-PMT is contained in a thermally insulated, sealed-off housing evacuated to a high vacuum. Simple operation by air cooled TE cooler. It is a high sensitivity detector with a large detection area of 18mm for collimated light. It includes a HV power supply with interlock function.
Fast response time
Rise Time: 900 ps
TTS: 300 ps
This unit includes the housing, power supply, and detector components, but does not include mounting to a monochromator or sample chamber. Please include mounting separately.
44,625.00
In stock
The NIR-PMT is contained in a thermally insulated, sealed-off housing evacuated to a high vacuum. Simple operation by air cooled TE cooler. It is a high sensitivity detector with a large detection area of 18mm for collimated light. It includes a HV power supply with interlock function.
Fast response time
Rise Time: 900 ps
TTS: 300 ps
This unit includes the housing, power supply, and detector components, but does not include mounting to a monochromator or sample chamber. Please include mounting separately.
44,625.00 44625.0 USD
Price Valid only in North America


A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-512 detector
Power supply
All cables and connections required for the system
A/D data acquisition board and basic software library
5,459.00
In stock
A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-512 detector
Power supply
All cables and connections required for the system
A/D data acquisition board and basic software library
5,459.00 5459.0 USD
Price Valid only in North America


A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-1024 detector
Power supply
All cables and connections required for the system
A/D data acquisition board
Includes free version of SciRunLDA, a basic library for interfacing with other software. We recommend SciLDA, the full software package, for users who want a full feature system.
5,571.00
In stock
A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-1024 detector
Power supply
All cables and connections required for the system
A/D data acquisition board
Includes free version of SciRunLDA, a basic library for interfacing with other software. We recommend SciLDA, the full software package, for users who want a full feature system.
5,571.00 5571.0 USD
Price Valid only in North America


This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.
21,121.00
This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.
21,121.00 21121.0 USD
Price Valid only in North America

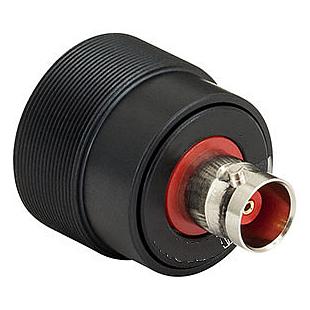

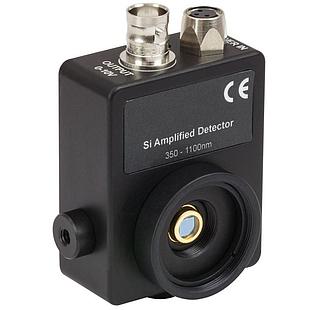

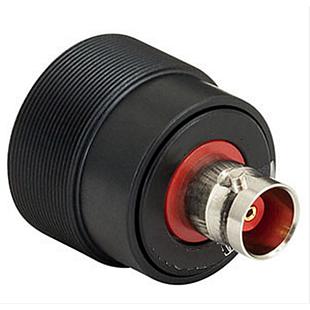

Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V
320.00
In stock
Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V
320.00 320.0 USD
Price Valid only in North America


Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V
320.00
In stock
Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V
320.00 320.0 USD
Price Valid only in North America


Active Area: 0.82mm^2 (1.02mm diameter)
Rise Time: <1ns
NEP: 5.0 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 2.5nA @ 20V
Junction capacitance: 10pF @ 0V
320.00
Active Area: 0.82mm^2 (1.02mm diameter)
Rise Time: <1ns
NEP: 5.0 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 2.5nA @ 20V
Junction capacitance: 10pF @ 0V
320.00 320.0 USD
Price Valid only in North America


Material: Si
Wavelength Range: 350-1100
Detector Size: 3.6 x 3.6mm
Gain (Fixed): 8 x 10 dB steps
Bandwidth Range: DC - 17MHz
NEP: 2.1x10^(-12) to 7.7x10^(-11) W/Hz^(1/2)
650.00
In stock
Material: Si
Wavelength Range: 350-1100
Detector Size: 3.6 x 3.6mm
Gain (Fixed): 8 x 10 dB steps
Bandwidth Range: DC - 17MHz
NEP: 2.1x10^(-12) to 7.7x10^(-11) W/Hz^(1/2)
650.00 650.0 USD
Price Valid only in North America


Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)
800.00
In stock
Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)
800.00 800.0 USD
Price Valid only in North America


Material: Si
Wavelength Range: 200-1100
Detector Size: 1.0mm diameter
Gain (Fixed): 10kV/A
Bandwidth Range: DC - 150MHz
NEP: 5.5x10^(-11) W/Hz^(1/2)
632.00
In stock
Material: Si
Wavelength Range: 200-1100
Detector Size: 1.0mm diameter
Gain (Fixed): 10kV/A
Bandwidth Range: DC - 150MHz
NEP: 5.5x10^(-11) W/Hz^(1/2)
632.00 632.0 USD
Price Valid only in North America


Active Area: 13mm^2 (3.6 x 3.6mm)
Wavelength Range: 350-1100nm
Rise Time: 14ns
NEP: 1.6x10^(-14) W/Hz^(1/2)
Dark Current: 0.35nA
Junction Capacitance: 40pF
560.00
In stock
Active Area: 13mm^2 (3.6 x 3.6mm)
Wavelength Range: 350-1100nm
Rise Time: 14ns
NEP: 1.6x10^(-14) W/Hz^(1/2)
Dark Current: 0.35nA
Junction Capacitance: 40pF
560.00 560.0 USD
Price Valid only in North America


Rise/Fall Time: 14 ns
Active Area: 13mm^2 (3.6 x 3.6mm)
NEP: 1.6E-14 W/Hz^(1/2)
Dark Current: 0.35 nA
Material: UV-enhanced Si
Junction Capacitance: 40pF @5V
360.00
In stock
Rise/Fall Time: 14 ns
Active Area: 13mm^2 (3.6 x 3.6mm)
NEP: 1.6E-14 W/Hz^(1/2)
Dark Current: 0.35 nA
Material: UV-enhanced Si
Junction Capacitance: 40pF @5V
360.00 360.0 USD
Price Valid only in North America
Copyright © Sciencetech
