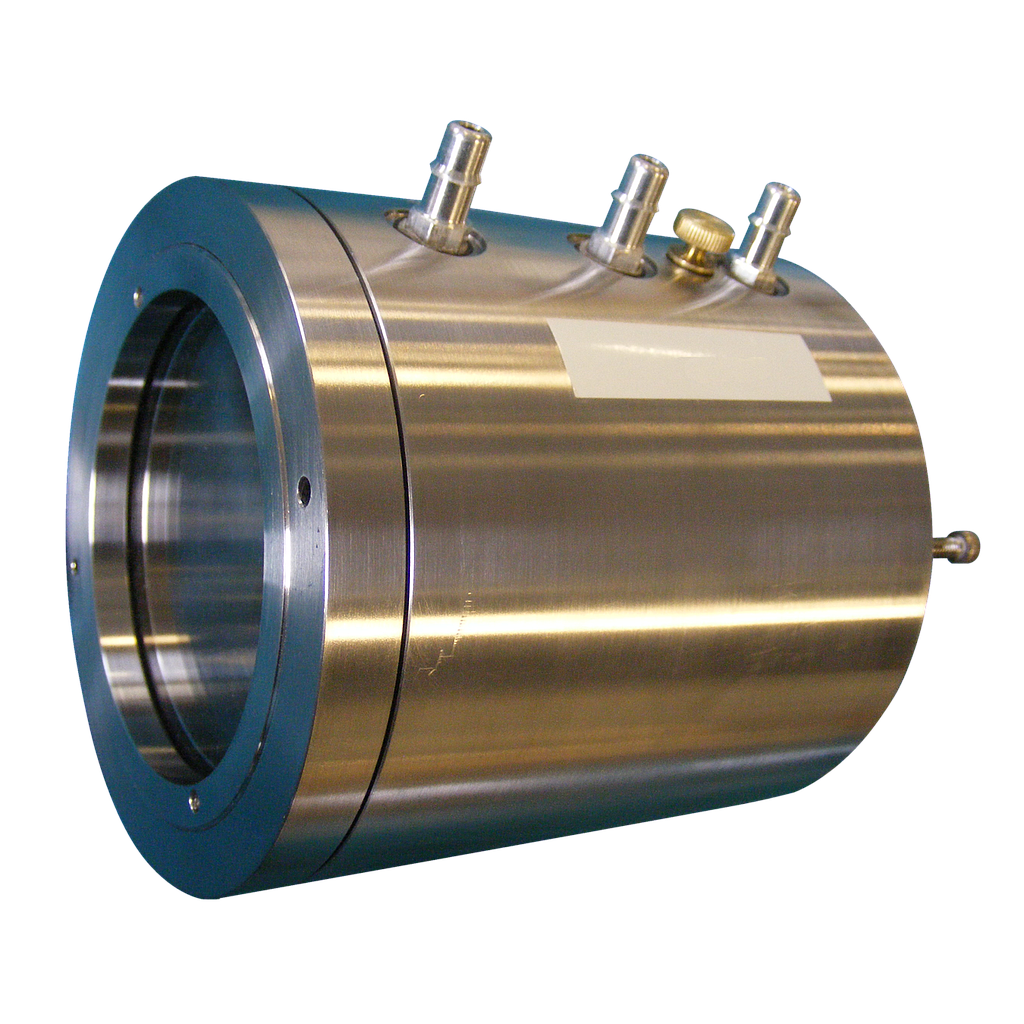

(WF-AL-3Q) Optical Liquid Filter, 3" Diameter, Aluminum Housing, Fused Quartz Windows

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light and can be used for UV applications. It can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Aluminum provides superior heat transfer compared to stainless steel but should not be used in corrosive environments.

1,816.00 1816.0 USD

1,816.00

SKU: 100-8066

Category: Optical Components

Price Valid only in North America

Additional Information

SKU 100-8066
Name (WF-AL-3Q) Optical Liquid Filter, 3" Diameter, Aluminum Housing, Fused Quartz Windows
Spectral Range UV, Visible, Infrared
Solar Filters Other
Filter Size 5.0 to 7.6cm
Filter Type Bandpass
Filter Style Absorbing
Spectral Range (nm) 200-2500
Thickness (mm) path length 80 mm
Dimensions 108x102x152 mm
Transmission band (nm) 200-950
Reflected / Absorbed Band 950-2500 nm
