(TLS-55-X300) Tunable Light Source

Sku: 105-9002

Quick Overview

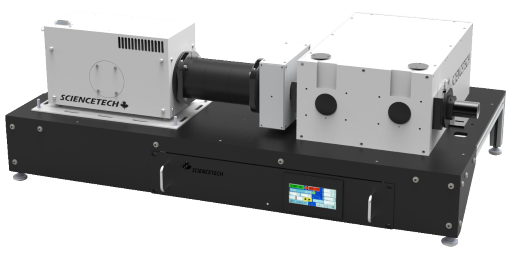

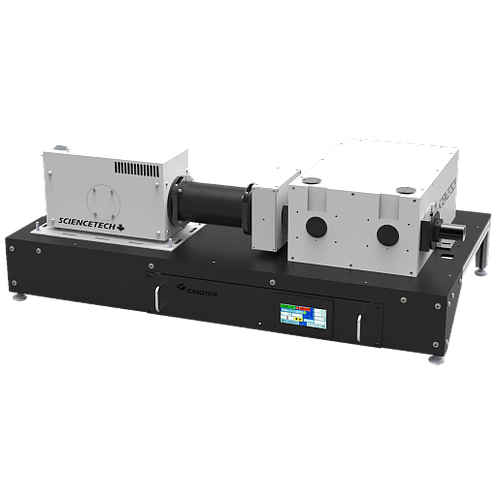

The TLS-55-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300W Xe lamp, 601-300 power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator. Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

The TLS-55-X300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

Availability: In stock


Product Attachments

View FileTunable Light Sources    Size: (1.77 MB)

Additional Information

Name (TLS-55-X300) Tunable Light Source
SKU 105-9002


SCIENCETECH has built a reputation on custom solutions.  Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.


Contact us for more info or request a quote
