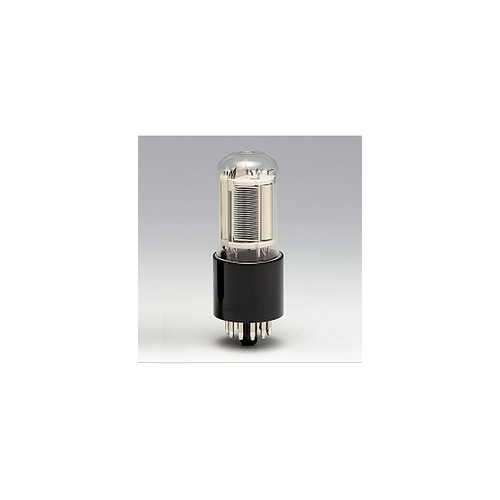

PMT Tube, Hamamatsu R636-10 (185-930nm)

Sku: 589-0006

Quick Overview

A 28mm, side-on type PMT Tube from Hamamatsu.
The effective range is from 185nm to 930nm.

For full technical specifications, please ask your authorized Sciencetech technical sales staff member.

Availability: In stock


Product Attachments

View File660-0006    Size: (22.94 KB)

Additional Information

Name PMT Tube, Hamamatsu R636-10 (185-930nm)
SKU 589-0006
Spectral Region NIR, UV, Visible
Detector Material Photo-multiplier Tubes
NEP dark current 0.1 nA
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
Spectral Range (nm) 185-930 nm
AC or DC Coupling DC Coupled
Single or Multichannel Single
Responsivity 63 mA/W
Detectivity (cm-Hz^1/2/W) N/A
Horizontal Pixel Range No
Detector Type Photomultipliers


SCIENCETECH has built a reputation on custom solutions.  Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.


Contact us for more info or request a quote
