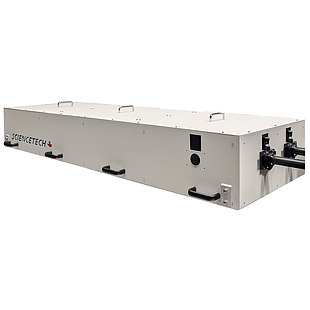

High Resolution Series



9150X pico meter resolution

Spectral line measurement from the 9150X showing picometer scale resolution


High Resolution Configuration Options





Model and F/# Options

Model

F/#

Nominal Grating Size (mm x mm)

Available Turret

Configurations

9040

F/6.9

64 x 64

1G, 3G

9040F

F/5.2

84 x 84

1G, *

9040EF

F/4.0

102 x 102

1G, *

9490

F/13

64 x 64

1G, 3G

9490F

F/9.7

84 x 84

1G, 3G

9490EF

F/7.4

102 x 102

1G, 3G

9150

F/3.5

102 x 102

1G, 3G

9150EX

Call

Call

Echelle



A number of turret configurations are available.  Some turret configurations are not available in some monochromators due to mechanical limitations.

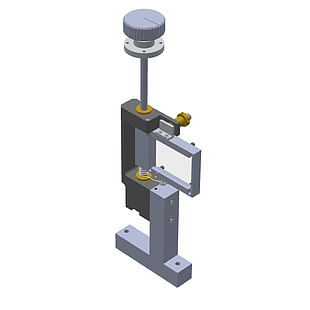

1G turrets allow for manual grating selection.  Each grating is mounted on a kinematic grating holder that can be easily removed and swaped for a different grating.

1G Turrets: Manual Grating Selection

Part #

Grating Size

(mm x mm)

Number of Gratings

120-8039

64 x 64

1

120-8040

84 x 84

1

120-8041

102 x 102

1

3G turrets allow for motoroized grating selection.  Up to 3 gratings are mounted on a cassette.  The cassette rotates perpendicularly to the axis of rotation of the sine drive.  The cassette can be replaced with other cassettes allowing for unlimited grating options

3G Turrets : Motorized Grating Selection

Part #

Grating Size

(mm x mm)

Number of Gratings

120-8056

64 x 64

 3

120-8057  84 x 84  3
120-8058  102 x 102  3







Input Port Configuration

Part #

Model

Description

120-8044

9000-HI-IN

Fixed Side Input Port

120-8032

DPIN-HI-MAN

Manual Dual Input Port

120-8072

DPIN-HI-MOT

Motorized Dual

Input Port



Output Port Configuration

Part #

Model

Description

120-8045

9000-HI-OUT

Fixed Side Output Port

120-8033

DPOUT-HI-MAN

Manual Dual Output Port

120-8076

DPOUT-HI-MOT

Motorized Dual

Output Port



There are three basic parameters to consider when choosing a grating for your standard series monochromator



 A) Required Wavelength Range



The wavelength range available to you is determined by the grating groove density chosen and the angular mechanical limitation of the monochromator.


 B) Grating Efficiency



Ruled gratings may be blazed to increase their efficiency over a specific wavelength band.  Holographic gratings can be modulated such that they are more efficient at some wavelengths then at others.  Grating efficiency curves are the best tool for determining the most efficient grating available for your application.  It is important to note that grating efficiency curves do not represent the exact efficiency that should be expected when the grating is used in a monochromator as grating efficiency curves are taken at Littrow angle.


 C)    Required Resolution and Bandwidth



Resolution is a measure of an instrument’s ability to separate adjacent spectral lines.  Resolution is generally given in nm.  The bandwidth (or bandpass) is the wavelength range that falls on the output port at any one time and is also given in nm.  This is an important parameter when integrating a camera such as a linear array or CCD on the output port of the monochromator.







Standard mirror coatings are aluminum with a MgF2 protective layer.  Standard gratings have an aluminum coating.  metallic coating.  If your application would benefit from different mirror or grating coatings please refer to the codes below at the time of order.

Mirror or Grating Coating

Useful Range

Code

Aluminum (MgF2 coating)

350nm +

Standard

UV enhanced Aluminum

200nm +

-UV

Silver

400nm +

-S

Gold

600nm – Far IR, best option for NIR

-G




View FileHigh Resolution Series Monochromators    Size: (564.23 KB)

9###   -  (EF) -   #G    -   (**)

        1                       2                    3                        4




1: Model Name
9040
0.5 meter focal length
9490
1.0 meter focal length
9150
1.5 meter focal length


3: Turret Configuration

1G

Single Grating,

Manual Selection

3G

Triple Grating,

Computer Controlled

2: Mirror Size - Effects F/#

-

75x75mm -Concave Mirrors

F

90x90mm - Concave Mirrors

EF

110x110mm - Concave Mirrors

4:Options

-DP

With Dual Pass Option

-CM

Wide Camera Mirror

-UV/S/G

Mirror Coating Options

-DS

Double Subtractive System*

-DA

Double Additive

System*
